ПОДШИПНИК РОЛИКОВЫЙ САМОУСТАНАВЛИВАЮЩИЙСЯ 23940-S-K-MB
Inner diameter:: 200 mm
Outer diameter: 280 mm
The size of the width: 60 mm
Outer diameter: 280 mm
The size of the width: 60 mm
Технические характеристики из каталога производителя:
- Обозначение23940-S-K-MB
- ПроизводительFAG
- e0,2
- Y13,42
- Y25,09
- Y03,34
- ds6,3 mm
- ns12,2 mm
- d280 mm
- B60 mm
- D1256,9 mm
- Da max269,8 mm
- da min210,2 mm
- ra max2,1 mm
- rmin2,1 mm
- m11,5 kg / Вес
- Cr550000 N / динамическая грузоподъемность, радиальная
- C0r1080000 N / статическая грузоподъемность, радиальная
- nG2800 1/min / Предельная частота вращения
- nB1670 1/min / Базовая тепловая частота вращения
- Cur71000 N
Bearings NA69/22
Manufacturer: INA-FAG
Sizes: 22x39x30 (mm)
Weight:: 0.015 (kg)
ПОДШИПНИК ШАРИКОВЫЙ РАДИАЛЬНЫЙ 6244-M
Manufacturer: FAG
Sizes: 220x400x65 (mm)

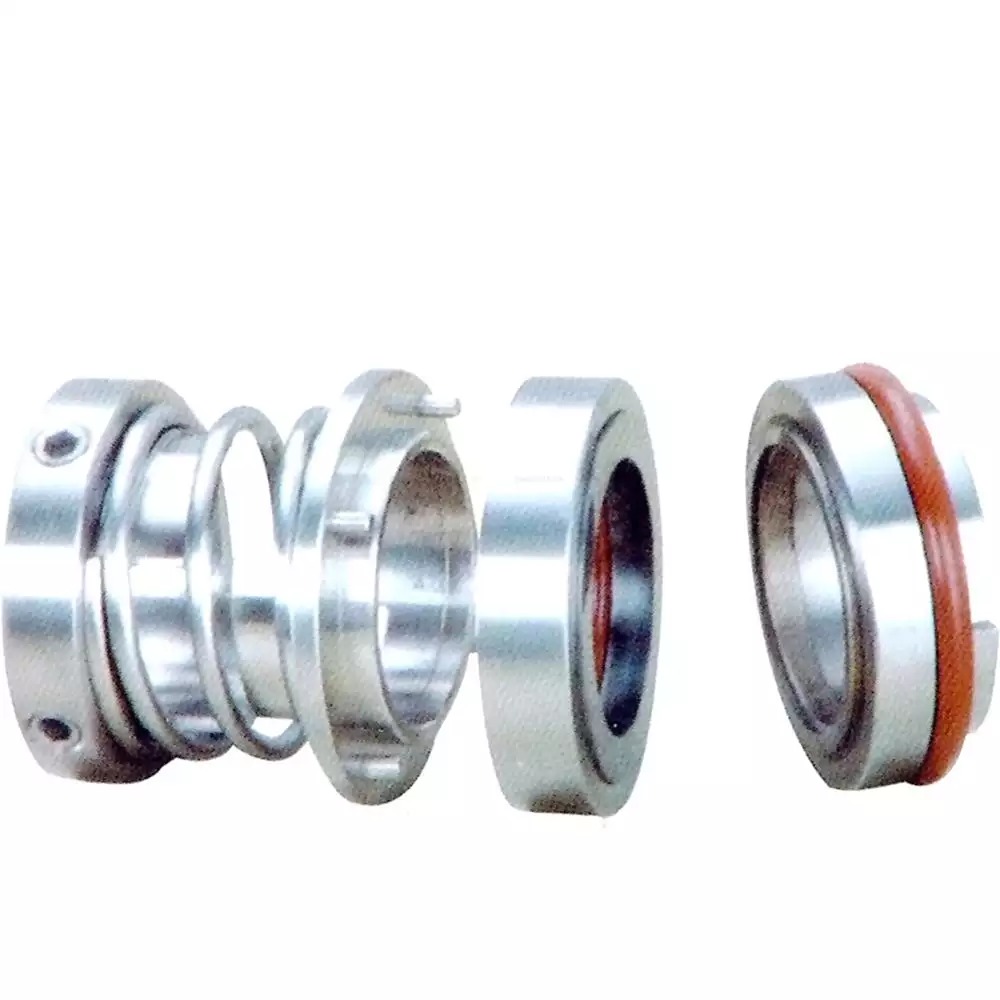

Торцевое уплотнение RM MG1-19
Manufacturer: RiMi
Bearing 6003RZS (160103)
Manufacturer: TMB
Sizes: 17x35x10 (mm)
Weight:: 0.041 (kg)
Подшипник LM1820
Manufacturer: NSK-RHP
Sizes: 15x25x20.2 (mm)
Weight:: 0.037 (kg)
ПОДШИПНИК КОМБИНИРОВАННЫЙ YRT180
Manufacturer: INA-FAG
Sizes: 180x280x15 (mm)
Weight:: 7.7 (kg)
CTD 1960 C14M
Manufacturer: ContiTech AG
Зубчатый полиуретановый ремень 101,6 мм 400 L MEGALINEAR ( 101,6 мм 400L )
Manufacturer: ContiTech AG
Bearing 51201
Manufacturer: ETERNO
Sizes: 12x28x11 (mm)
Weight:: 0.034 (kg)
Bearing NJ234EMP6 (E42234EH)
Manufacturer: TMB
Sizes: 170x310x52 (mm)
Weight:: 18 (kg)
INSTALLING BEARINGS
Approximately 16% of all early pill accidents are caused by faulty mounting (generally excessive force) and lack of proper tools.
DROPPING BEARINGS
The need for dismantling (removal) of the bearing can be caused by several reasons: failure of the bearings, disassembly of other parts of the mechanism, and so on.
SELECTION OF FUEL OILS
The use of grease to lubricate the bearings ensures smooth operation and maximum reliability of bearings, even in extreme conditions.
