ContiTech AGAT10 610 GEN III
Specifications
Identification on the belt : MADE IN GERMANYSYNCHROFLEX AT10/610 GENIII
Trademark : CONTI®SYNCHROFLEX
Manufacturer : ContiTechAG (Германия)
Belt dimensions:
| Tooth step | t | мм | 10 |
| Thickness | hs | мм | 5 |
| Tooth height | ht | мм | 2.5 |
| Nominal length | Lp/Lw | мм | 610 |
| Number of teeth |
61 | ||
| Length (inch) | h | мм | 610 |

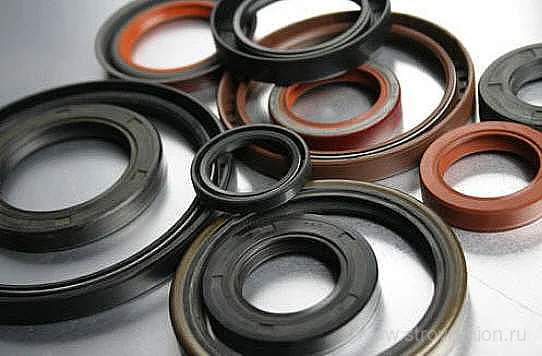

SEALS (REINFORCED SEAL) (GR)
Manufacturer: FEKO
Sizes: 10x22x4.50 (mm)
ContiTech L 150 HF
Manufacturer: ContiTech AG
Подшипник NU 421
Manufacturer: NSK-RHP
Sizes: 105x220.5x60 (mm)
Weight:: 17.3 (kg)
ПОДШИПНИК РОЛИКОВЫЙ ИГОЛЬЧАТЫЙ С ОДНИМ НАРУЖНЫМ ШТАМПОВАННЫМ КОЛЬЦОМ, ЗАКРЫТЫМ С ОДНОЙ СТОРОНЫ BK1412
Manufacturer: INA-FAG
Sizes: 14x20x12 (mm)
STUFFING BOX (REINFORCED CUFFS) NON-STANDARD (UN)
Manufacturer: STO
Sizes: 30x45x10 (mm)
ШАРИКОПОДШИПНИК УПОРНЫЙ КОМБИНИРОВАННЫЙ С ИГОЛЬЧАТЫМИ РОЛИКАМИ NX10-Z
Manufacturer: INA-FAG
Sizes: 10x19x18 (mm)
K38 PU(118x126x13)
Manufacturer: KASTAS
Sizes: 118x126x13 (mm)
Подшипник NP 334
Manufacturer: NACHI
Sizes: 170x310x72 (mm)
Weight:: 36.1 (kg)
K69 POM(175x170x15)
Manufacturer: KASTAS
Sizes: 175x170x15 (mm)
Bearing 22356 (3656)
Manufacturer: TMB
Sizes: 280x580x175 (mm)
Weight:: 235 (kg)
